ST Series

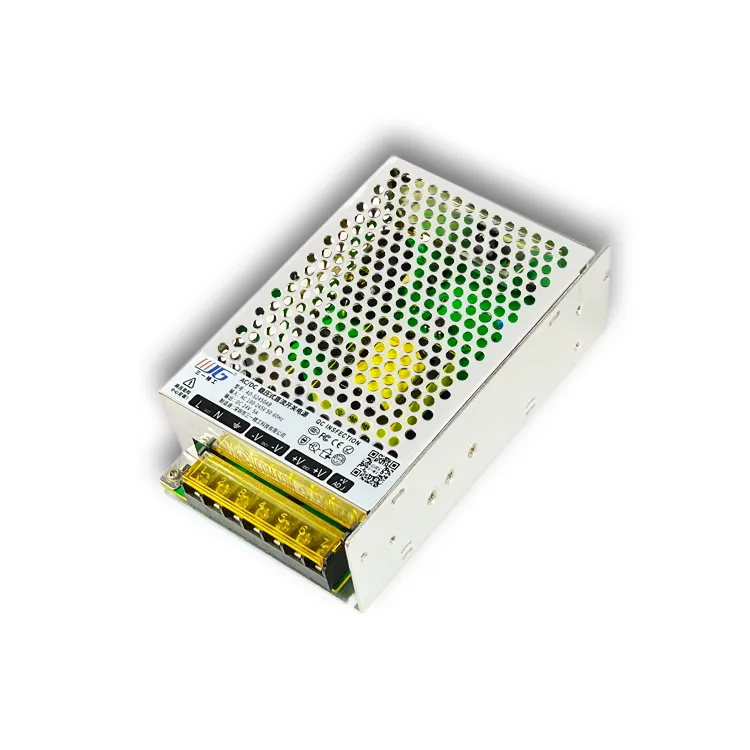

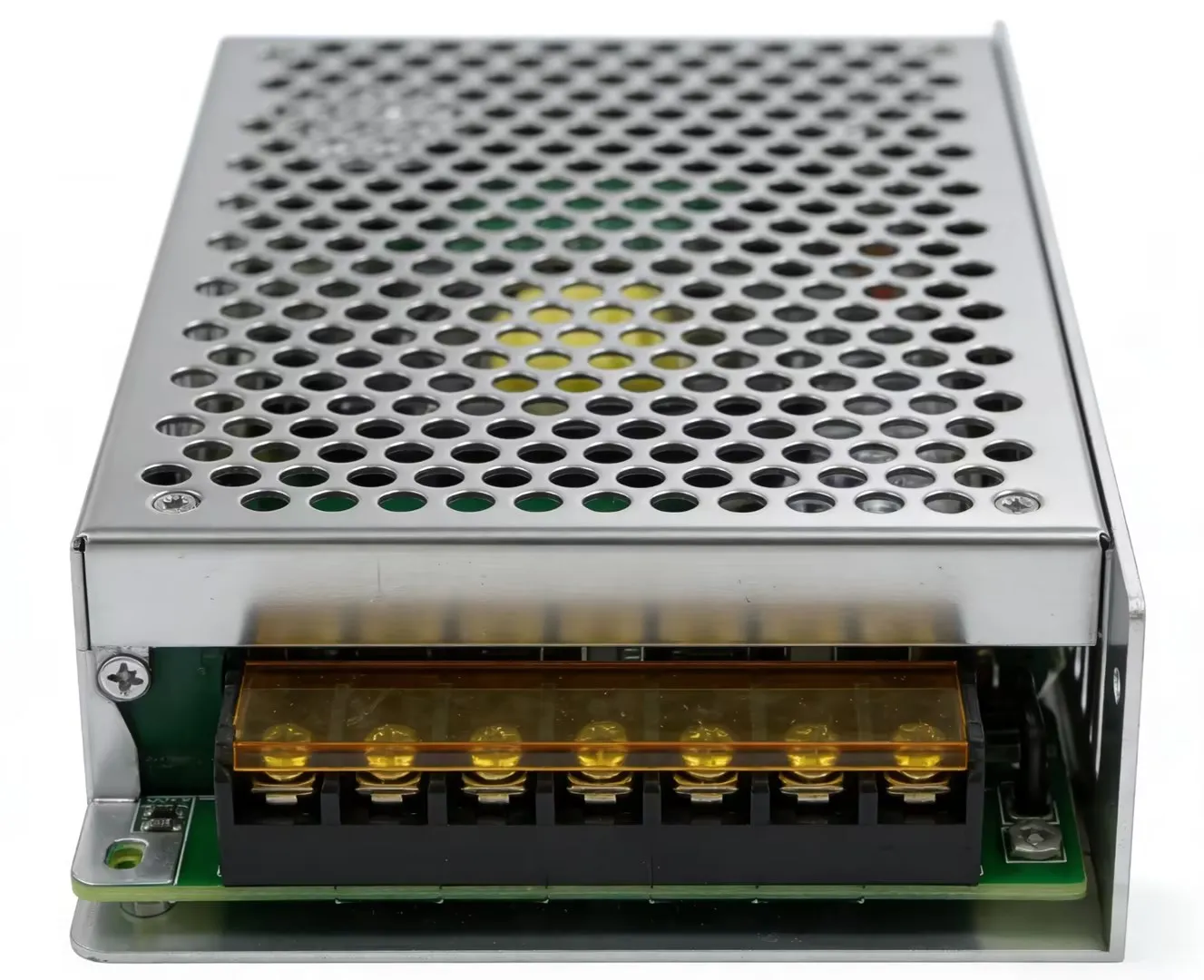

Standard Switching Power Supply 48W-120W
Standard series switching power supply covering the 48W-120W power range, suitable for small-to-medium security systems, LED lighting, and low-voltage systems. Multiple output specifications available.
Certifications
3CCEROHS
Applications
Switching PSU48W-120WStandard
Inquire About This Product
Need custom parameters or bulk pricing? Contact us for a tailored solution.
Inquire About This Product →Features
- 48W-120W multiple power levels available
- Compact design saves space
- Low ripple noise output
- Long-life electrolytic capacitors
Specifications
| Available Models | ST-48W / ST-60W / ST-72W / ST-100W / ST-120W (AA/AB/AC variants) |
| Power | 48W / 60W / 72W / 100W / 120W |
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | DC 12V / 24V (Optional) |
| Efficiency | ≥ 84% |
| Operating Temperature | -10°C ~ +45°C |
| Protection | Overcurrent/overvoltage/short-circuit protection |
