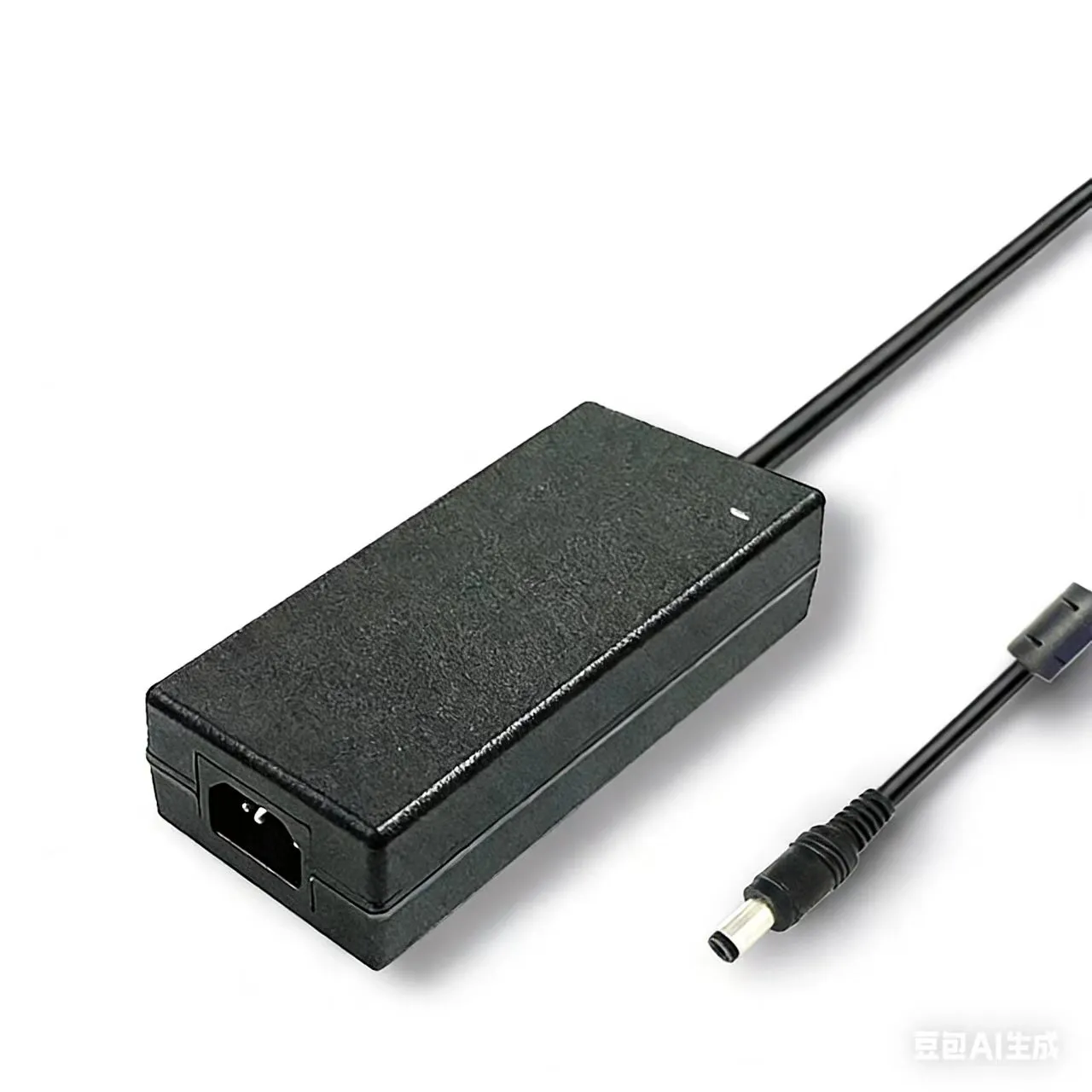

APE Series
Desktop Adapter 48W-120W
Mid-to-high power desktop adapter, 48W-120W, suitable for POE injectors, surveillance NVRs, and industrial control equipment.
Certifications
Applications
Inquire About This Product
Need custom parameters or bulk pricing? Contact us for a tailored solution.
Inquire About This Product →Features
- 48W-120W mid-to-high power
- Compatible with POE injectors
- Built-in EMI filter
- Fully safety certified
Specifications
| Available Models | APE-48W / APE-60W / APE-72W / APE-96W / APE-120W |
| Power | 48W / 60W / 72W / 96W / 120W |
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | DC 12V / 24V / 48V / 52V (Optional) |
| Protection | Overcurrent/overvoltage/short-circuit protection |
